Hargrave 2004 Custom 68 Hargrave Open flybridge

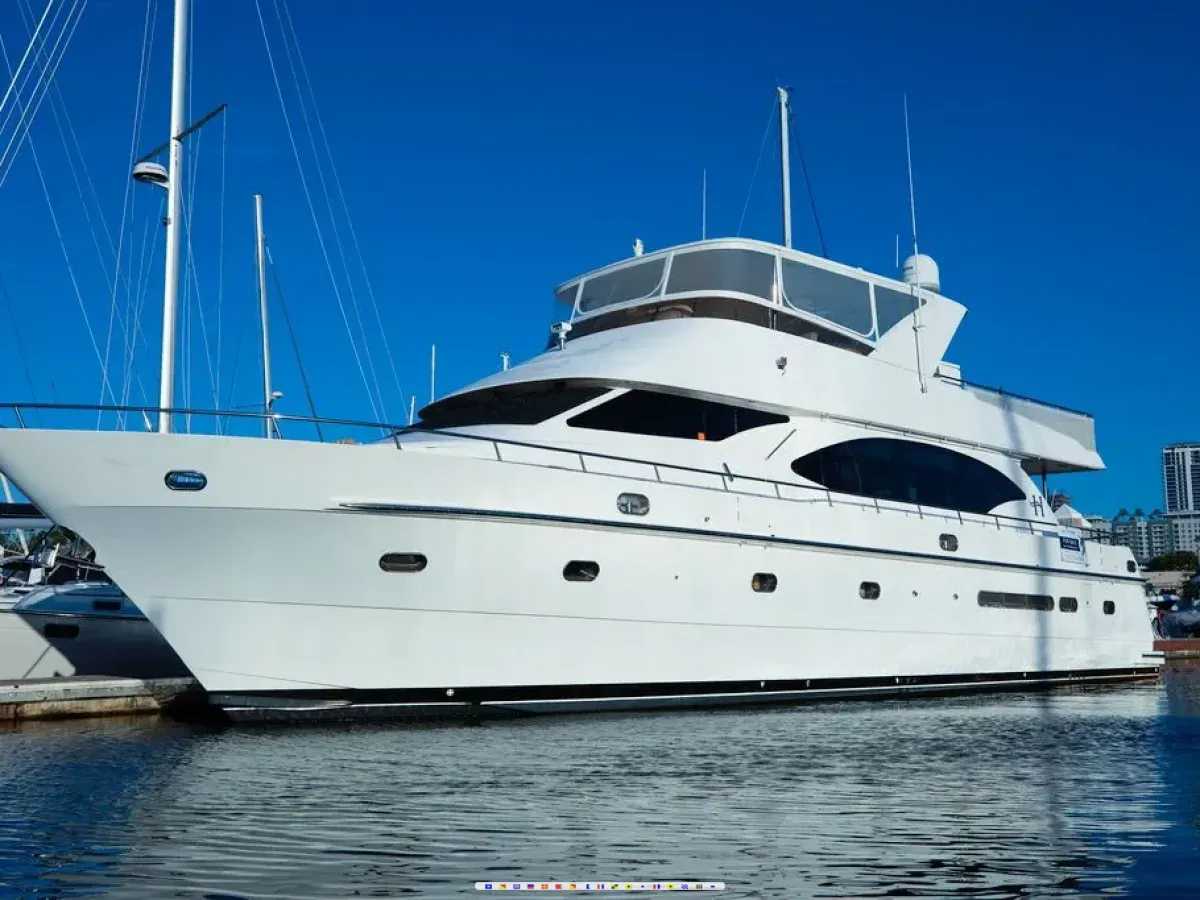

68' Hargrave Open Bridge 2004 68' HARGRAVE Motor Yacht

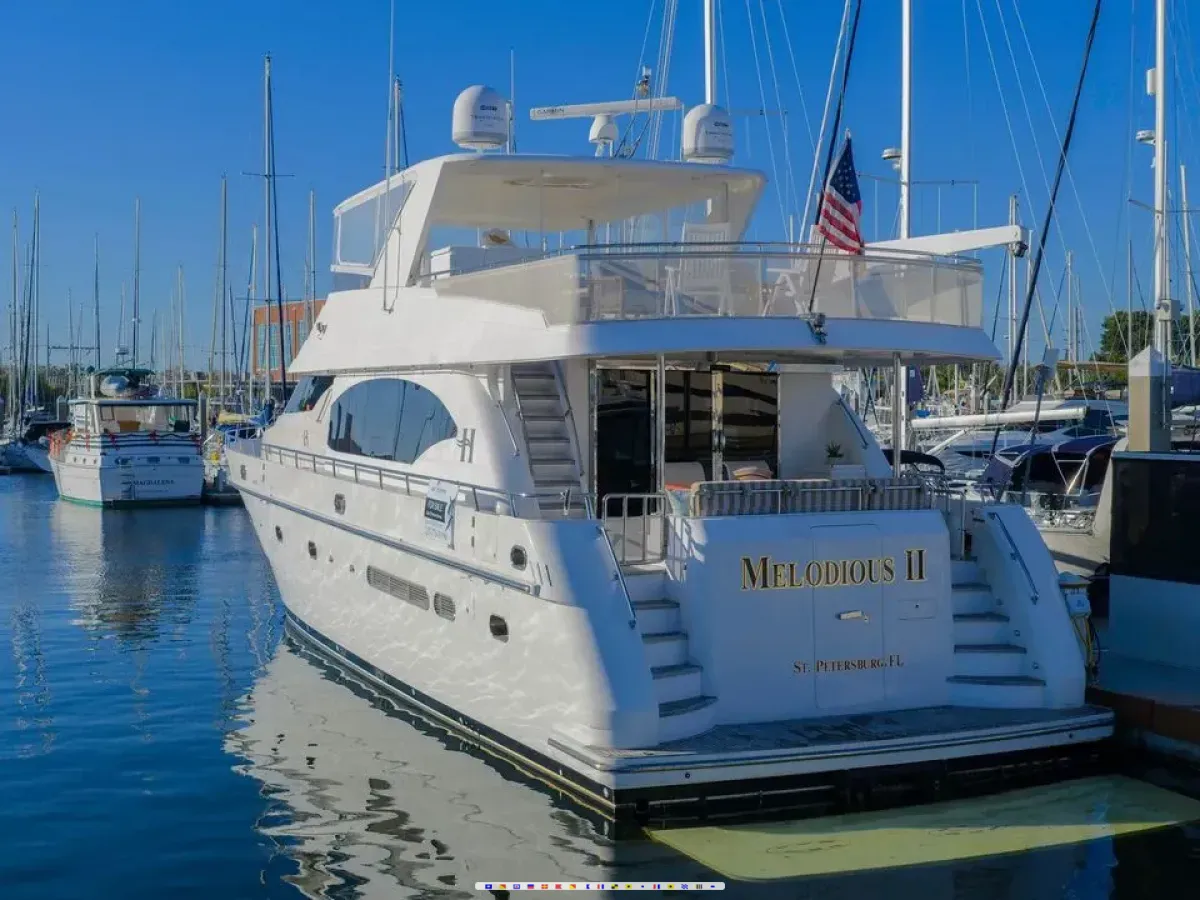

Melodious II is ready to cruise at moments notice. Well Equipped and a long list of maintenance and upgrades along with her vast interior and exterior spaces make Melodious II a comfortable cruising yacht.

Additional Specs, Equipment and 'Information:
Builder /Designer
Builder: Hargrave
Engines
Engine Power: 1600 HP
Dimensions
LOA: 68 '0" (20.73m)
Beam: 18' 6" (5.64m)
Max Draft 5' 6"

Engines
800HP twin CAT Port 3406E TA 3125 hours 800HP twin CAT Starboard 3406E TA 3190 hours
Twin Onan 27.5 Generators 3240 hours (port) 3498 hours (stbd)
Tankage
Fuel Capacity: 1,500 gallons (5678 liters)
Water capacity: 250 gallons (946 liters)
Holding Tank 130 Gallons (492 liters)

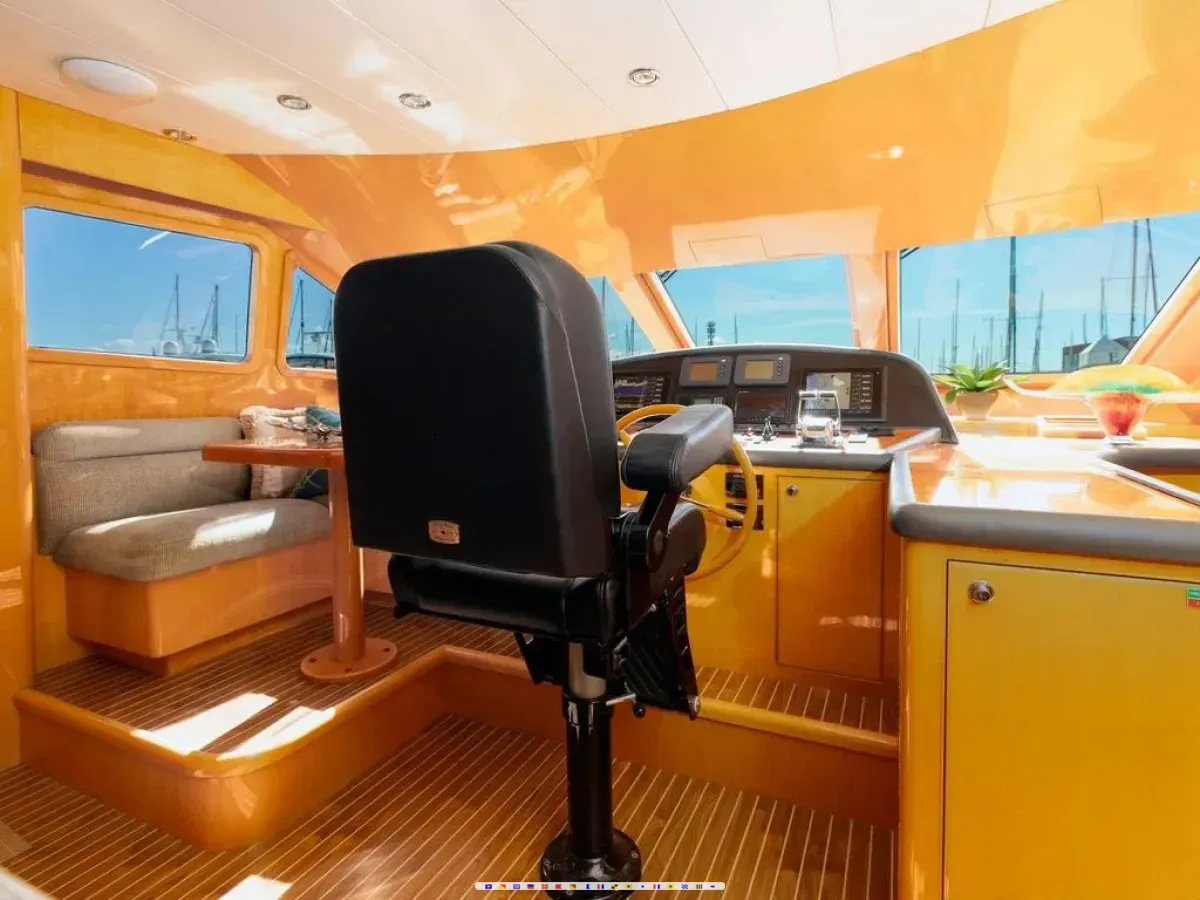

Pilothouse and Electronics
Wood trimmed stainless steel steering wheel. Hynautic hydraulic clutch and throttle controls Furuno 12" Nav Net 3D plotter/radar/depth Garmin 8212 12" touchscreen plotter/radar/depth Simrad AP20 autopilot
Raymarine ST60 digital depth (2CAT) LCD Gauge panels Icom M604 VHF
Naiad Multisea II stabilizer controls VDO rudder angle indicator Maxwell windless controls Tankwatch 4 holding tank monitor
(6) bilgepump control switches w/indicator lights & alarm
Naiad Joystick bow thruster controls (3)windshield washer/wiper controls Wema fuel tank gauges
Wema water tank gauge
(2) Seafire system monitors
Start/Stop switches for both main engines and generators Bose stereo speakers
(11) overhead LED light fixtures Low RPM switches.
KVH Tracvision 4

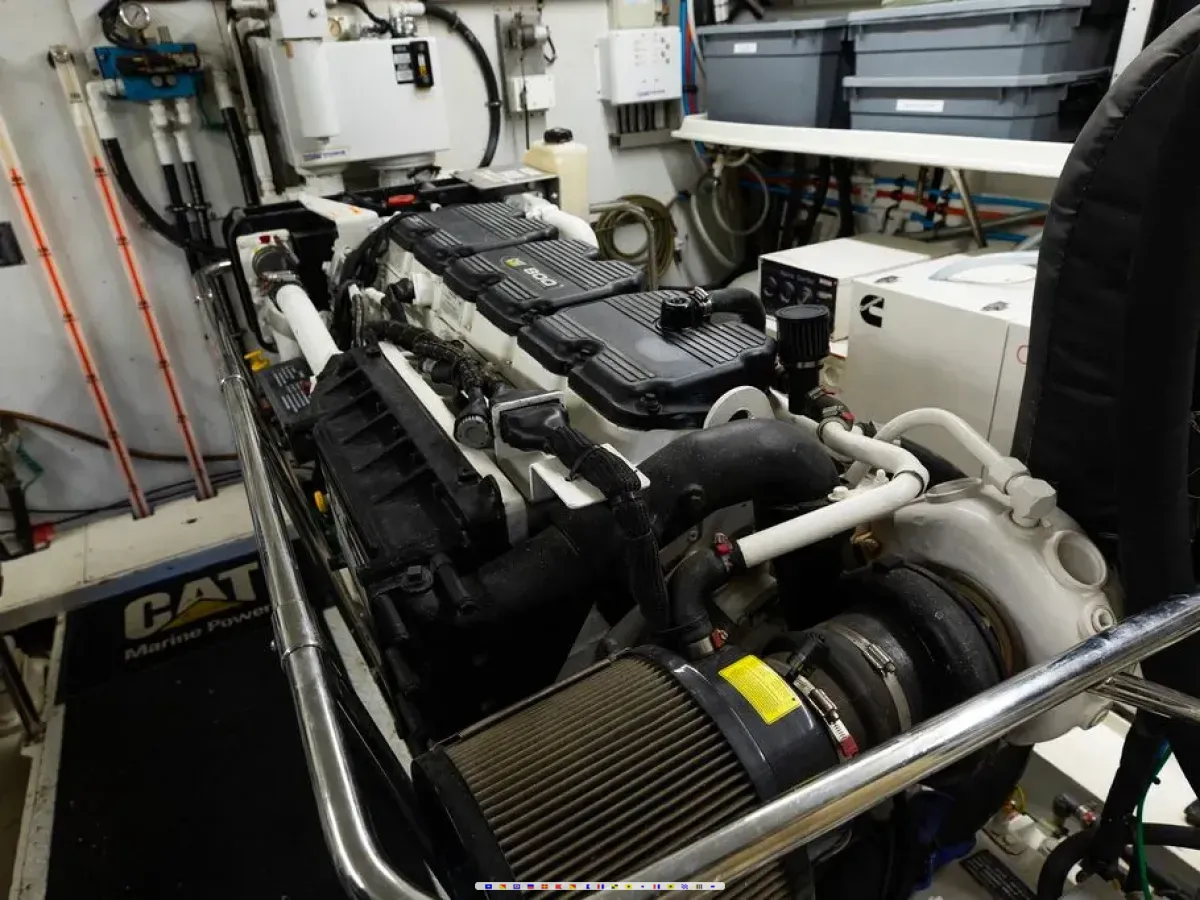

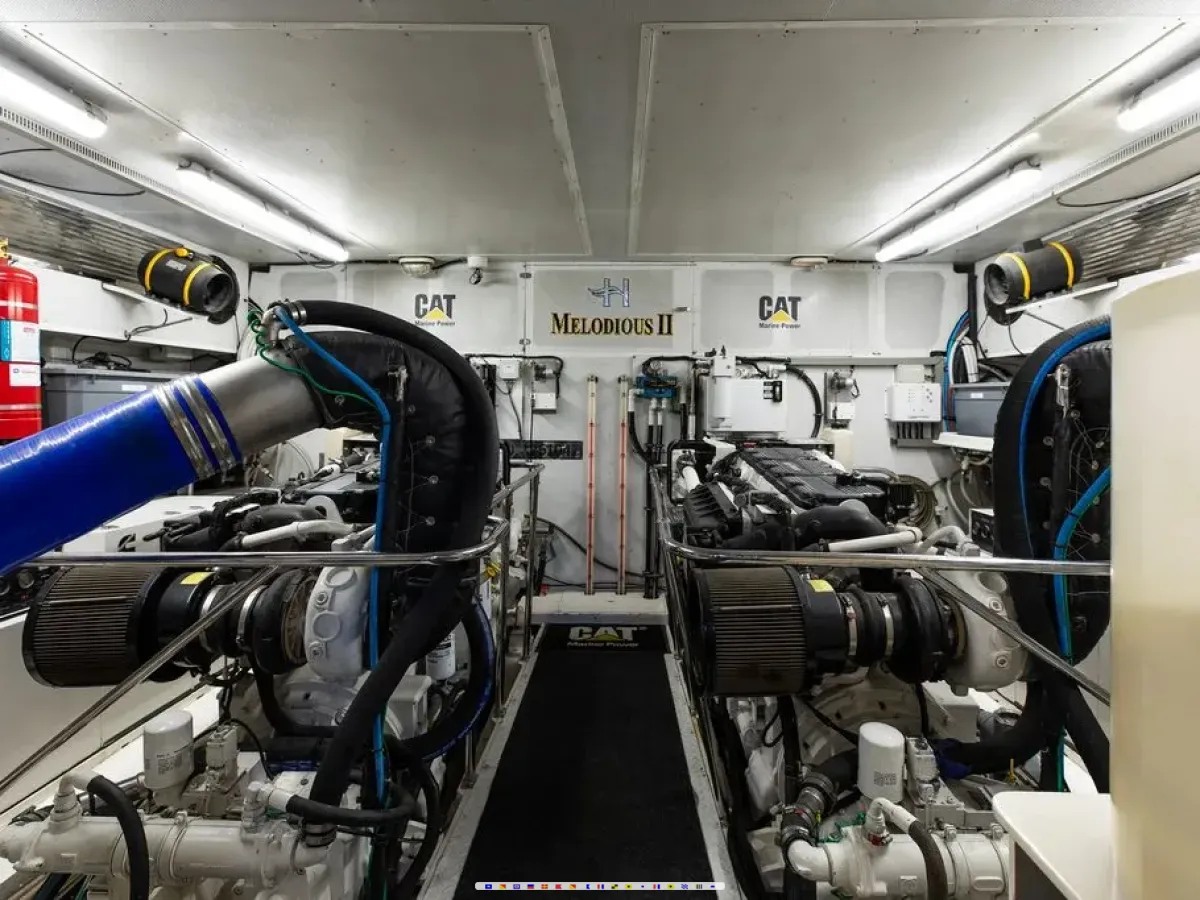

Engine Room
(1) 33.8 lb FE241 Seafire Engine room fire suppression systems Recently Certified 10/25
(4) AC intake blowers
(2) AC extractor blowersAftercooler sent out, cleaned and pressure tested. Reinstalled with new gaskets. 2/23.
Hynautic hydraulic steering reservoir w/pressure gauge Autopilot drive pump
Reverse 6 point oil change pump and manifold Glendenning 220v 100 AMP cablemaster and storage bin Sea Recovery Aquawhisper water maker 1400 gpd
PTO ran off Stbd engine for stabilizer/bow thruster
(4) AC LED fluorescent lights
(4) DC incandescent lights
Air Compressor for horn/ships service Deck wash down pump
Dripless shaft seals Engine hour meters
Head hunter Machl AC freshwater pump
Groco DC backup freshwater pump Torrid 30 gallon water heater Freshwater spigot with hose
(2) AC raw water circulation pumps for HVAC system
(6) Cruiseair air condition compressors units: Salon 24,00 BTU, Galley 16,000 BTU, Master 16,000 BTU, Master 7,00 BTU, VIP 7,000 BTU, Crew 7,000 BTU.
(2) 750 gallon aluminum fuel tanks w/manifold Davit electro/hydraulic power pack
Stabilizer Raw water cooling pump
Dual Racor 1000 fuel filters w/vacuum gauge for both engines Racor 500 fuel filters for generators
Kiddie dry chemical fire extinguisher Removable diamond deck plates Hand operated bilge pump
(2) fuel sight gauges
ZF 350A transmissions w/2.077 to 1 gear ratio AirSep carnkcase ventilation system
shower sump
Five blade propellers
2 3/4 inch stainless steel shafts 125 gallon waste tank
Stainless steel grab rails around engines Naiad HPS 25hp bowthruster
Y valve and macerator for dockside/seaside pumps High temp and low oil alarms
Naiad 254 stabilizer system with 7.5 sq ft fins Bennet trim tabs
( 4) coolant recovery bottles
Custom port and starboard shelving with storage. Chest style tool storage with workbench and vice Overhead rod holders (6)

Lazarette
Steering activator
Rudder angle feed back sensor Freshwater distribution manifold
(2) overhead lights
Acces area to stbd rudder for emergency tiller operation High water alarm
crew shower sump
(5) Blue Ocean LED underwater lights

Electrical System
12/24 volt DC electrical system 110/220 Volt AC electrical system
( 4) 8D batteries for ships service ( 4) 8D batteries for engine bank
(2) separate 31 series batteries for generators Acme shore power isolation transformer
Port side Onan 27.5 KW generator in sound box
Starboard Onan 27.5 generator in sound box Shore power inlet breaker, engine room aft
MORE INFO ON REQUST
