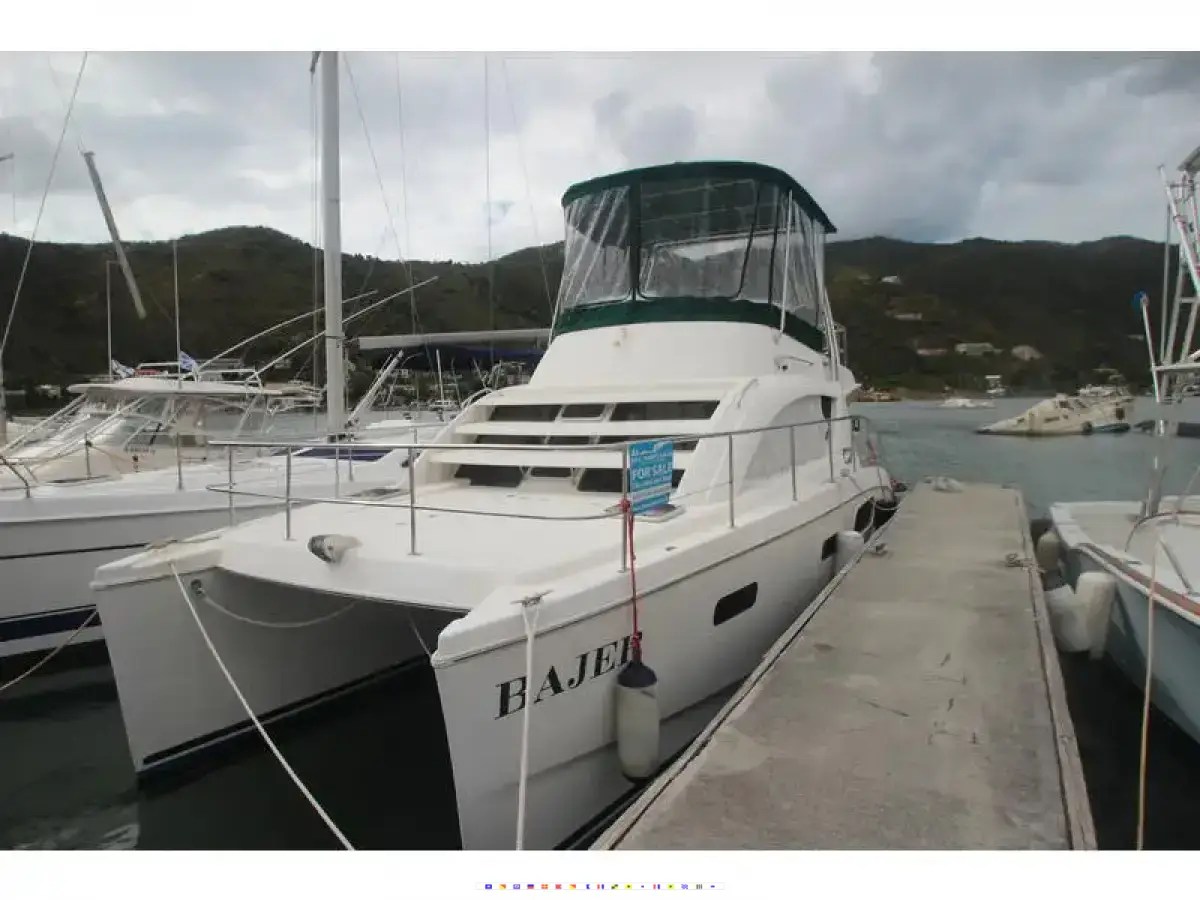

Leopard 37 Power Cat

The Leopard 37 PC is designed by famed naval architects Morrelli and Melvin and built by Robertson and Caine. This 2 cabin, 2 head power catamaran has an extraordinary amount of inside and outside space and is perfectly suited for entertaining of 15 people, as well as for extended cruising and island hopping with two couples or a family. The interior features two staterooms, two heads, indoor dining, a fully equipped galley and a spacious salon with navigation station. The relatively narrow beam of 14ft 8in allows docking in standard berths, a real plus over wider catamarans. The shallow draft of only 3ft allows access to anchorages not available to most. The flybridge with large bimini with a full enclosure provides a great view for everyone while providing the helmsman the perfect vantage point for docking or to read coral heads and shallow water. The twin 110 HP Yanmar diesels provide extraordinary maneuverability in marinas, and allow for very fuel efficient extended cruising at 3-4 mi - gallon for a real-world range approaching 600 miles.
Boat Name
Bajer

Specs
Flag of Registry: United States
Hull Shape: Catamaran

Dimensions
LOA: 37 ft 6 in
Beam: 14 ft 8 in
LWL: 35 ft 11 in
Maximum Draft: 3 ft 2 in
Displacement: 15183 lbs
Dry Weight: 20000 lbs

Engines
Total Power: 220 HP

Engine 1:
Engine Brand: Yanmar
Year Built: 2008
Engine Model: 4JH4-HTE
Engine Type: Inboard
Engine - Fuel Type: Diesel
Engine Hours: 2700
Engine Power: 110 HP
Engine 2:
Engine Brand: Yanmar
Year Built: 2008
Engine Model: 4JH4-HTE
Engine Type: Inboard
Engine - Fuel Type: Diesel
Engine Hours: 2700
Drive Type: Direct Drive
Engine Power: 110 HP

Cruising Speed: 12 knots
Maximum Speed: 21 knots

Tanks
Fresh Water Tanks: 2 (113 Gallons)
Fuel Tanks: 2 (211 Gallons)
Holding Tanks: 2 (15 Gallons)

Accommodations
Number of single berths: 4
Number of cabins: 2
Number of heads: 2
Seating Capacity: 8


SHIPBOARD AMENITIES
VESSEL lAYOUT:
Port and starboard hulls: A bow storage compartment, spacious head (toilet & shower) with electric marine toilets , companionway and a double stateroom aft.

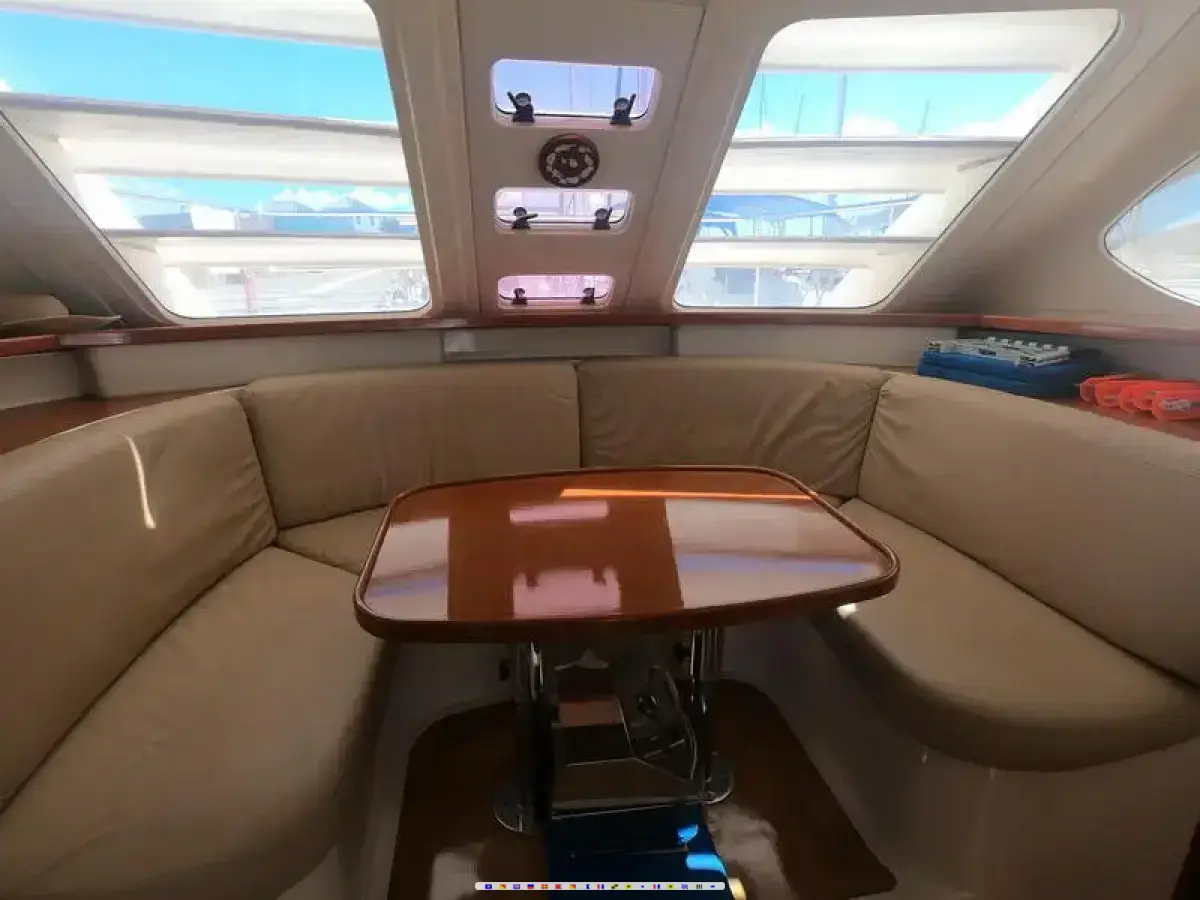

Bridgedeck with saloon settee Saloon - dining table forward with seating for 6 , galley to starboard and the navigation station to port.
The flybridge has an external stairway to the aft deck on the port side -
The Helm to starboard and a settee with a dining table. Generous aft deck aft of the settee.

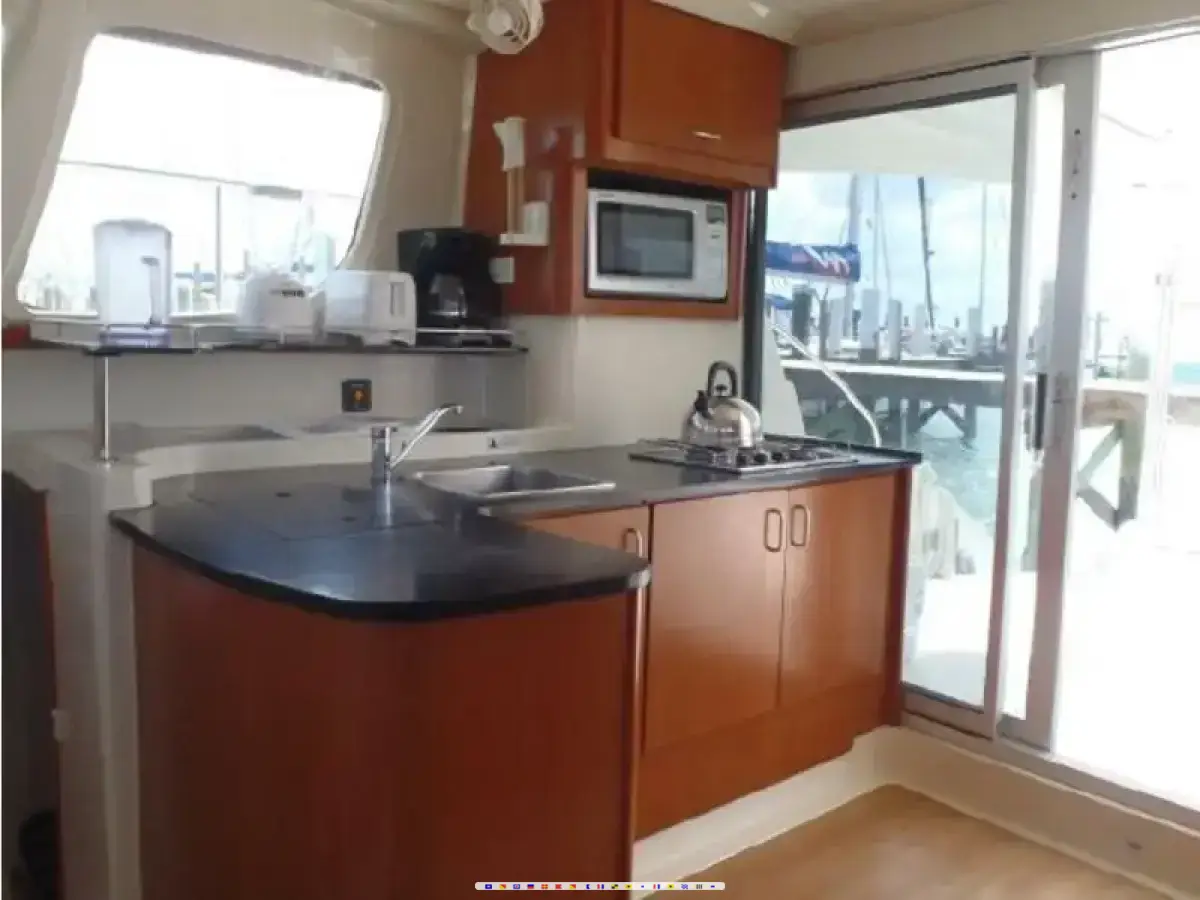

GALLY:
STOVE: 'Eno' 3 burner propane stove top.
MICROWAVE OVEN: 'Sharp'
LCD DISPLAY: 'Viore LCD19VH65' 19 inch display with a built in DVD player.
STEREO: 'Sony CDX-HS70MS' radio with interior, flybridge & cockpit speakers. a Sony RM X60M' remote on the flybridge.

Electrical Systems
DC SYSTEM:
12-volt House batteries: 2 x 'Lifeline GPL-4DA' 210Ah AGM batteries (port engine compartment).
Start batteries: 1 x 'Napa' Group 27 lead acid battery (port engine compartment) 2017
1 x Group 27 lead acid battery (starboard engine compartment). 2017
Circuit Protection Devices: Rotary battery isolation switches.
Power distribution System: Labeled 12 circuit breaker panel.
Volt & Ammeters: Yes - analogue.
Charging system: 80A alternator fitted to each engine.
40A - 110-volt battery charger.
REFRIGERATION: 'Vitrifrigo' 12-v air-cooled compressor.

AC SYSTEM:
Generator: 6kW 'Northern Lights' diesel generator in a sound proof casing.
110-volt Engine hours: 5770 hours.
Battery charger: 40A 'Victron Energy Centaur'
Shore power: 30A cable

AIR CONDITIONING:
2 x 12 000 BTU 'Cruisair' air conditioning units (mounted below the saloon settee).

CATHODIC PROTECTION:
Propeller shaft and propeller nut zinc anodes.
NAVIGATION SYSTEMS:
G.P.S - CHA
